Granulating

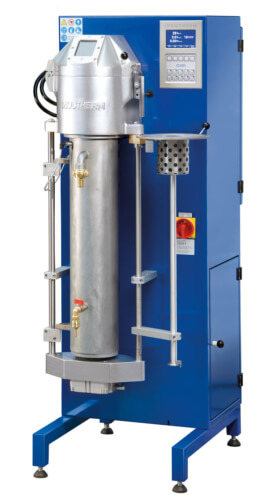

Granulation Machine GU500

Granulation machines have been developed especially for granulating metal ingots into uniform grains. These machines are used with separate (portable) granulation tanks and are available in various sizes, with crucible volumes ranging from 245 cm³ to 12,000 cm³.



Main applications:

  • Preparation of metal from gold and alloy under inert gas atmosphere or vacuum
  • Preparation of alloy from components under inert gas atmosphere or vacuum
  • Cleaning of previously cast metals under inert gas atmosphere or vacuum

GU500
Generator Power 10 kW
Crucible Volume GU500 (standard) 245 ccm 3.6 kg 18K Au 2.4 kg Ag 2.1 kg Cu
Crucible Volume GU500L (optional) 386 ccm 5.7 kg 18K Au 3.8 kg Ag 3.3 kg Cu
Crucible Volume GU500XL (optional) 700 ccm 10 kg 18K Au 6.6 kg Ag 5.7 kg Cu
Maximum Temperature 1200ºC
Overall Dimensions 500 x 820 x 1450 mm
Weight 120 kg
