Granulating

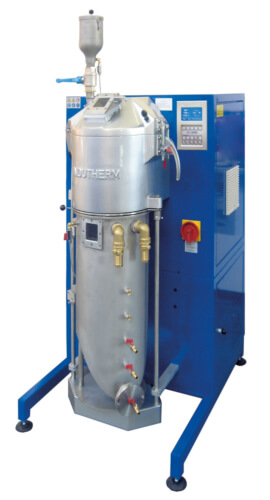

Granulation Machine GU3000

Granulation machines have been developed especially for granulating metal ingots into uniform grains. These machines are used with separate (portable) granulation tanks and are available in various sizes, with crucible volumes ranging from 245 cm³ to 12,000 cm³.



Main applications:

  • Preparation of metal from gold and alloy under inert gas atmosphere or vacuum
  • Preparation of alloy from components under inert gas atmosphere or vacuum
  • Cleaning of previously cast metals under inert gas atmosphere or vacuum

GU3000
Generator Power 30 kW
Crucible Volume 3400 ccm
Crucible Capacity 51 kg 18K Au 34 kg Ag 30 kg Cu
Maximum Temperature 1200ºC
Overall Dimensions 800 x 1200 x 1500 mm
Weight 250 kg
