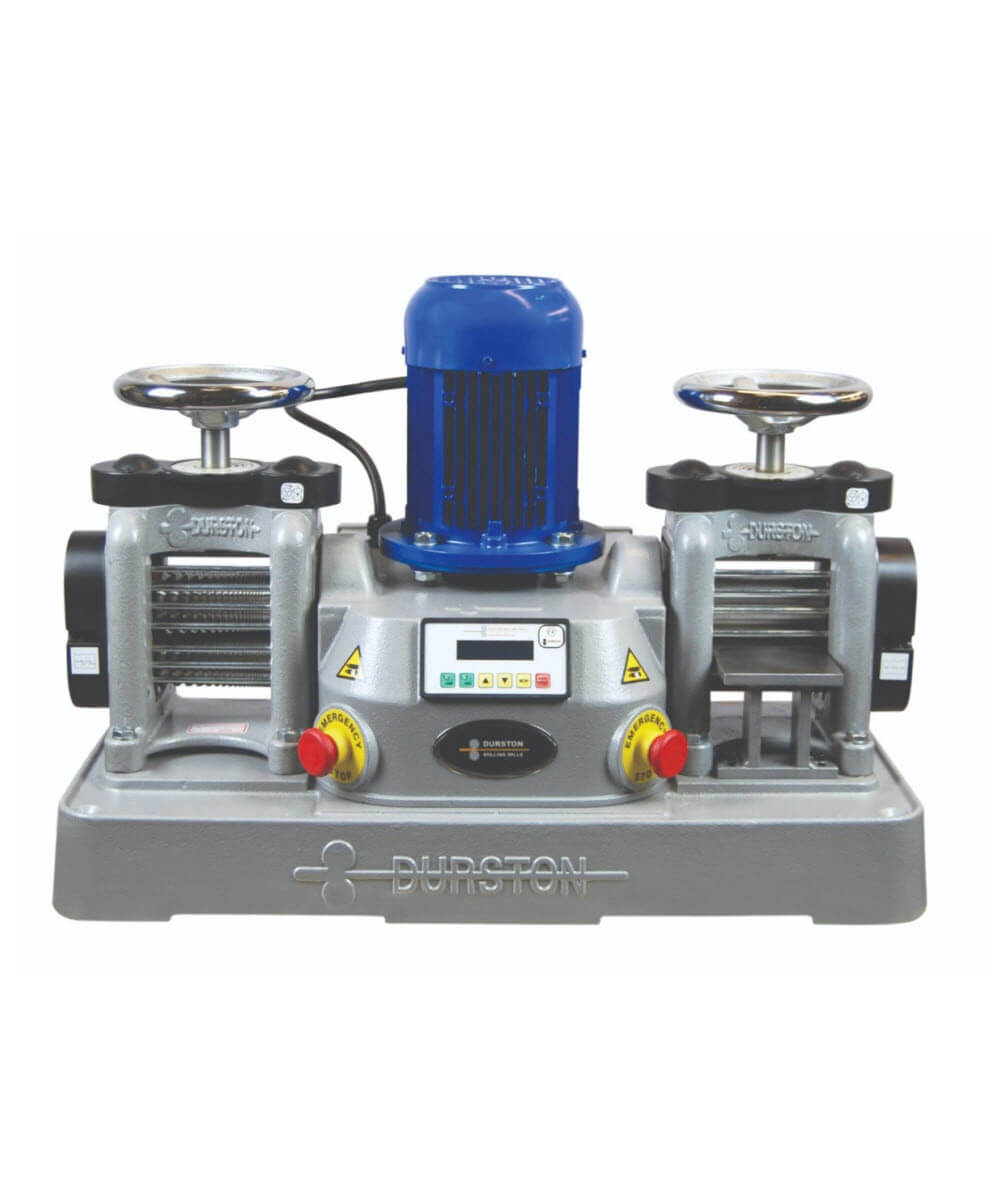

DRM130 Motorised Double-Sided Cylinder

Durston rollers are leaders in the precision rolling industry with their strong and durable construction. The left roll of the DRM 130 Double model is designed for rolling sheet metal, while the right roll is designed for rolling wire. Thanks to the side rolls (rollers) on both sides, the wire can also be given a fishbone (half-circle) shape. The 1.1 kW silent motor is suitable for continuous operation. The cylinder rolls (rollers) have a hardness of 64 HRC. Bidirectional operation and adjustable speed are standard features. The emergency stop button, safety bars, side rollers and upper gear covers are safety features of the device.

Advanced Powered Rolling Mill – Technical Specifications
Feature Specification
Roller Diameter 65 mm
Roller Length 130 mm
Max. Sheet Thickness 6 mm
Wire Diameter Range (Max. / Min.) 10 mm – 1 mm
Number of Wire Grooves 19 Pieces
Operating Speed 5-20 rpm
Side Roller Groove Sizes 4, 3, 2, 1.5 mm and 8, 6, 3 mm
Electrical Specifications 1.1 kW / 220 V
External Dimensions 39x83x54 cm
Weight 180 kg
