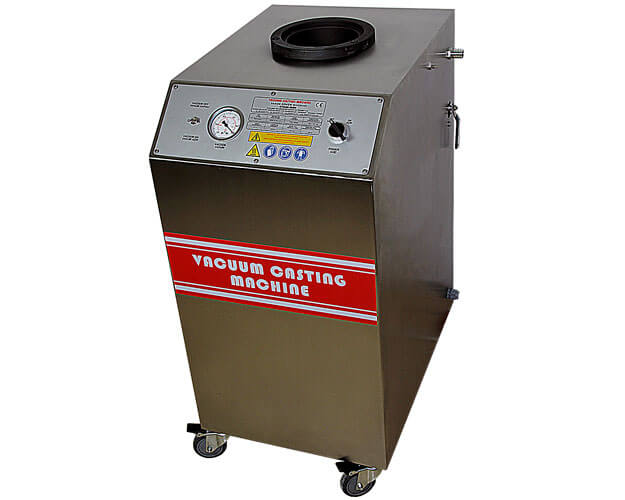

Vacuum Casting Machines

VC25000

Our large vacuum pressure casting machines are mainly used for precision castings in aluminum alloys, as well as for artistic and handcrafted objects made of brass and bronze.



They are always the first choice for parts with complex geometries or in cases where the production quantity is not sufficient for pressure die casting.



The VC 25000 V offers the best prerequisites for high-quality castings in aluminum.



The hydrogen content in aluminum alloys can be controlled by adjusting the vacuum during the melting process.



In this way, foaming of the molten metal is prevented without the use of any melt additives.



The high pressure applied in the melting chamber during and after casting, combined with simultaneous vacuum in the mold chamber, optimizes mold filling—especially in detailed or thin-walled areas.

Since 2018, all of our large VC machines have been equipped with a program control system featuring 100 programs.



Thanks to the full-text LCD control panel, users can set and adjust all programs and parameters easily and conveniently.

Get Offer

Performance VC25000V
Maximum power / electrical connection 60 kW · 3×400 V
Maximum temperature 1300 °C
Capacity –
Crucible volume 25,000 ccm ≈ 65 kg Al*
Flask diameters Ø 600 mm × 800 mm
Operation + control –
Maximum pressure 0.3 bar
Automatic melting chamber locking Standard
Dual temperature control Standard
Temperature programs LCD display / 100 programs
Adjustable vacuum in flask chamber Standard
Turbulence-reducing software Standard
Quality management –
RS-232, fault detection system, remote service Standard
Data printer Standard
GSM modem (remote service) Standard
Accessories –
Granulation tank Optional
*Liquid metal up to the maximum level of the crucible
Other Products in Category
Teknik Döküm | VC25000
VC25000
View Details
Teknik Döküm | Vacuum Casting Machines
Vacuum Casting Machines
View Details
Teknik Döküm | Vacuum Casting Machines
Melting

Indutherm Continuous Casting Machine CC400

More flexibility, lower costs Indutherm continuous casting machines help you to save production costs.
With only one machine, you can produce your own alloys or semi-finished products in different shapes and sizes in the shortest time, for example:

  • wires or bars in every diameter you need, up to ø 90 mm (V-CC3000)
  • sheets and strips, e.g. ring production, for stamping and pressing
  • tubes, perfect as basic material for cutting in sections for wedding ring production
  • granulates

As the desired parts and alloys can be produced within minutes, you can reduce your investment for material in storage. Your processes will get faster, more flexible and more efficient. With optionally available equipment as for example sintering set for diffusion bonding and granulation tank the versatility of these machines may be enhanced even more.

The new CC/VCC generation: improved for even higher quality
The new CC/VCC machines are equipped with new and highly efficient induction generators. Thanks to a new control panel with full text LCD display, all parameters are very easy and convenient to set (100 casting programs).

To reduce the risk of oxidation during melting and during drawing, the new machines are equipped with inert gas function, vacuum system for the melting chamber (VCC), optical die temperature measurement, die cooler with inert gas flushing and additional secondary cooling system. All these measures are ideal especially for alloys containing copper such as red gold or for silver as these materials tend to oxidise easily. Degasification under a vacuum results in a substantially improved – because of the absence of oxidation – semi-finished product.

Get Offer
performance
performance max. / electrical connectıon 15 kW 3×400 V
maxımum temperature 1500º C
capacıty
crucıble volume CC400 standart 285 ccm = 4,2 kg 18ct Au *
CC400L (optıonel) 400 ccm = 6,0 kg 18ct Au*
CC400XL (optıonel) 700 ccm = 10,0 kg 18ct Au *
wıre / tube productıon (max. dıameter) between Ø20-45
sheet productıon 50 x 8 mm
60 x 8 mm (optionel)
handlıng+control
100 programs LCD-Display, full text display
vacuum/ınert gas overpressure standard equipment
optıcal dıe temperature measurement standard equipment
dıe co⁣oler wıth protectıve gas flushıng standard equipment
secondary co⁣oler standard equipment
end bar sensor standard equipment
qualıty management
RS 232, Ethernet, USB connectıons standard equipment
data prınter standard equipment
GSM Modem standard equipment
accessorıes
Quattro-drawıng unıt optionel
sınterıng kıt optionel
granulatıon tank optionel
bendıng-unıt optionel
* Lıquıd metal up to top level of the crucıble
Other Products in Category
Teknik Döküm | Indutherm Continuous Casting Machine CC400
Indutherm Continuous Casting Machine CC400
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Indutherm Indutherm Continuous Casting Machine CC1000
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Melting

Indutherm Indutherm Continuous Casting Machine CC1000

More flexibility, lower costs Indutherm continuous casting machines help you to save production costs.
With only one machine, you can produce your own alloys or semi-finished products in different shapes and sizes in the shortest time, for example:

  • wires or bars in every diameter you need, up to ø 90 mm (V-CC3000)
  • sheets and strips, e.g. ring production, for stamping and pressing
  • tubes, perfect as basic material for cutting in sections for wedding ring production
  • granulates

As the desired parts and alloys can be produced within minutes, you can reduce your investment for material in storage. Your processes will get faster, more flexible and more efficient. With optionally available equipment as for example sintering set for diffusion bonding and granulation tank the versatility of these machines may be enhanced even more.



The new CC/VCC generation: improved for even higher quality
The new CC/VCC machines are equipped with new and highly efficient induction generators. Thanks to a new control panel with full text LCD display, all parameters are very easy and convenient to set (100 casting programs).



To reduce the risk of oxidation during melting and during drawing, the new machines are equipped with inert gas function, vacuum system for the melting chamber (VCC), optical die temperature measurement, die cooler with inert gas flushing and additional secondary cooling system. All these measures are ideal especially for alloys containing copper such as red gold or for silver as these materials tend to oxidise easily. Degasification under a vacuum results in a substantially improved – because of the absence of oxidation – semi-finished product.

Get Offer
performance
performance max. / electrıcal connectıon 20 kW 3×400 V
maxımum temperature 1500° C
capacıty
crucıble volume 1500 ccm = 22 kg 18ct Au*
wıre/ tube productıon (max. dıameter) between Ø40-65
sheet productıon 100 x 10 mm
handlıng+control
100 programs LCD-Display, full text display
vacuum/ınert gas overpressure standard equipment
optıcal dıe temperature measurement standard equipment
dıe co⁣oler wıth protectıve gas flushıng standard equipment
secondary co⁣oler standard equipment
end bar sensor standard equipment
qualıty management
RS 232, Ethernet, USB connectiıons standard equipment
data printer standard equipment
GSM Modem standard equipment
accessorıes
Quattro-drawıng unıt optional
sınterıng kıt optional
granulatıon tank optional
bendıng-unıt optional
sımultaneous castıng of several wıres optional
(3 pcs. Wire) **
* Lıquıd metal up to top level of the crucıble
** not ın combınatıon wıth Quattro Drıve
Other Products in Category
Teknik Döküm | Indutherm Continuous Casting Machine CC400
Indutherm Continuous Casting Machine CC400
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Indutherm Indutherm Continuous Casting Machine CC1000
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Wedding Ring Production Line

Hydraulic Wedding Ring Sizer WRS-25

•  Fine Sizing Adjustmentt
•  Accurate sizing
•  Sensors for securing hands
•  Includes 32 aparatus for upsizing, and 20 aparatus for downsizing processes.



Big facility for the wedding ring producers using tube casting system, hydraulic wedding ring sizer for upsizing and downsizing of cut rings. Size warranty that makesno need to control with mandrel, high safety sensitivity that the machine requires you to use both hands and has two safety sensors. Includes 32 pieces upsizing and 20 pieces downsizing apparatus.

Get Offer
KOD WRS-25
Pressure Power 2,5 ton
Power 2.3 kW
Voltage 400V AC, 3 Faz
Frequency 50/60 Hz
Dımensıons 610x565x1550 mm
Weıght 210 Kg
Other Products in Category
Teknik Döküm | Indutherm Continuous Casting Machine CC400
Indutherm Continuous Casting Machine CC400
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Indutherm Indutherm Continuous Casting Machine CC1000
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Wedding Ring Production Line

Automatic Tube Cutting Machine BK-26

  • For wedding rings without soldering
  • Fast automatic production
  • Reliability to dimensions
  • Minimum loss with 0,60 mm cutter
  • Dimension and quantity adjustment by PLC controller
  • Separate collecting chambers for rings and shavings



A tube cutting machine designed especially for jewellery industry, for manufacturing wedding rings without soldering. A sophisticated very fast machine giving the opportunity to cut as many rings as desired, automatically, with the same width and numbers as adjusted on the control panel by choosing the relevent menus and assigning the appropriate values for the working parameters. Cutter speed adjustable. Ring cut and metal shavings collected at seperate chambers. No operator fatigue.

Get Offer
KOD BK-26
Cuttıng Capacıty Ø 14 – Ø 26 mm
Cuttıng Wıdth 0,6 – 20 mm
Cuttıng Speed 8 – 10 pcs./min.
Max. Cutting Thıkness 5 mm
Power 1.9 kW
Voltage 400V AC
Frequency 50/60 Hz
Dımensıons wıth Pıston (wxlxh) 590×16101330 mm
Weıght 330 kg
Other Products in Category
Teknik Döküm | Indutherm Continuous Casting Machine CC400
Indutherm Continuous Casting Machine CC400
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Indutherm Indutherm Continuous Casting Machine CC1000
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Wedding Ring Production Line

Hydraulic Tube Sharpening & Drawing Machine BKC-1,5

  • For jewelers to make rings without soldering
  • Excellent shaping
  • Minimum loss



  •  For manufacturing wedding rings without soldering
  •  Ability to bring the thickness, inner & outer diameters of the tube desired size quickly & continuously
  •  Perfect surface
  •  Ability to bring the thickness of tube to 1 mm



Machine designed to conically sharpen the tube ends in order to pass them through drawing dies to reduce the tube diameter. Its a practical and fast machine suitabe for various industrial purposes, and especially for jewellers in bringing the diameter of continuously cast tubes to the ring sized required.



————————————————————————————————————————————



Designed and realized to draw metal tubes of medium and big sections with a considerable reduction of their sections step by step by appropriate dies.

Get Offer
Kod 240142
Art. No BKC-1,5
Hydraulıc Drawıng Force Max. 12 Ton
Pressure Max. 180 bar
Tube Dıameter Range 14-28 mm
Drawıng Length 75 cm
Drawıng Speed 30 mm/sn
Power 4 kW
Voltage 400 V 3 faz
Net Voltage 730 kg
Dımensıons (wxlxh) 670x2260x1260 mm
Other Products in Category
Teknik Döküm | Indutherm Continuous Casting Machine CC400
Indutherm Continuous Casting Machine CC400
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Indutherm Indutherm Continuous Casting Machine CC1000
View Details
Teknik Döküm | Indutherm Indutherm Continuous Casting Machine CC1000
Casting Line

Indutherm Mini Casting Machine MC16

  • Perfectly suited for small castings and small series
  • Minimum material consumption – a thimble may be the right measure
  • 3.5 KW induction heating for fast heating and high maximum temperature
  • Even for the casting of steel and platinum
  • Fast process time thanks to short heating period of the flasks
  • The MC 16 mini casting machine is very easy to use

More about MC 16

Suitable for all metals

The 3.5 kW induction heating means that the material melts extremely rapidly in an atmosphere without oxidation. All metals – also platinum and steel – can be cast without difficulty. The crucibles are large enough to solve any standard casting task one would find in a studio or atelier with no difficulty at all. The flasks can also accommodate larger or heavier jewellery parts. It is equally possible to melt and cast minimal amounts of metal.

The entire process is extremely fast, especially if the goldsmith uses so-called speed investment compounds. This enables rapid response to new models, fulfillment of express orders and the implementation of last-minute ideas, for example before a trade fair.

Rapid and simple casting

The whole process of casting can be carried out simply, quickly and safely without any real prior technical knowledge of casting.
In the investment machine the gipsum gets mixed under vacuum – correctly dosed and air bubble free. The flask with the wax model gets filled under vacuum, too. Vibration during filling eliminates air inclusions.

The wax is molten off in the furnace and the mould is burnt out.

MC 16, the new MC series basic model

• NEW: Run of process with controller
• NEW: LCD-display with all program data
(20 programs)
• For graphite and for ceramic crucibles,
temperature up to 2000° C
• Very easy to use, short training period
• Perfectly suited for small castings and
small series
• 3.5 KW induction generator for fast heating
• Even for the casting of steel and platinum

Get Offer
Performance
Maximum Power / Electrical Connection 3.5 kW / 220 V
Maximum Temperature 2000 °C
Temperature Control Up to 1300 °C with Type N Thermocouple
Temperature Control Up to 1600 °C with Type S Thermocouple
Capacity
Casting Volume 100 g 18K Gold, 110 g Steel, 200 g Pt
Flask Diameters Ø 30/50/65/80 mm x 80 mm H
Operation + Control
Control Panel LCD
Automatic Vacuum Function Standard
Automatic Hammer Pressure Function Standard
Casting Under Vacuum Only Standard
Post-Casting Vacuum or Hammer Pressure Standard, up to +2 bar
Inert Gas Shielding/Rinsing Function Standard
Temperature Control Standard up to 1300°C with Type N Thermocouple, Optional up to 1600°C with Type S Thermocouple
Quality Management
RS 232, Ethernet, USB, etc. Connections Standard
GSM Modem (Remote Service) Optional
Accessories
Vacuum Mixing Machine Indumix2+ / Indumix3+ Optional
Furnace AK-20 or AK-50 Optional
Sandblasting Cabinet Optional
Vacuum Pump 8 m³/h Optional
Other Products in Category
Teknik Döküm | VC25000
VC25000
View Details
Teknik Döküm | Indutherm Mini Casting Machine MC16
Indutherm Mini Casting Machine MC16
View Details
Teknik Döküm | Indutherm Mini Casting Machine MC16
Casting Line

Indutherm Mini Casting Machine MC20V

Overview MC 20 V

The new 2,000°C MC 20 V tabletop casting machine:
cutting-edge technology in the most compact space.

  • Very easy and safe to use, short implementation time
  • Excellent price-performance ratio
  • 3,5 kW induction generator for quickly reaching the melting temperature
  • Thorough through-mixing of molten metals using low-frequency induction tuning
  • Melting under vacuum or inert gas to prevent oxidation
  • Top quality form filling using overpressure of up to 3 bars (casting under vacuum also possible)
  • Economical consumables

More about MC 20 V

 The MC 20 V is designed based on the same tilting principle as the MC 16. However it is systematically designed for intricate casting projects in continuous operation in larger foundries.

Latest generation generators

The MC 20 V is equipped with a latest generation induction generator, developed especially for this housing design and with high operating efficiency. Convenient, high precision control is provided via a new operating system, with an LCD display, full text display and program control.

Award-winning vibration technology – unique in its class

For the first time, our multi-award winning and patent-pending vibration system is now available in a compact casting machine. Using vibration when casting ensures better form filling, creating casts with greater, more consistent densities, higher elasticity and greatly reduced porosity. Vibration technology is a compelling alternative to the frequently used and relatively delicate centrifugal systems, especially when casting platinum or palladium

Get Offer
Performance
Maximum Power / Electrical Connection 3.5 kW / 220 V
Maximum Temperature Up to 2000°C
Capacity
Casting Volume 100 g 18K Gold, 110 g Steel, 200 g Platinum
Flask Diameters Ø 30/50/65/80 mm x 80 mm H
Operation + Control
Control Panel LCD
Automatic Vacuum Function Standard
Automatic Hammer Pressure Function Standard
Casting Under Vacuum Only Standard
Post-Casting Vacuum or Hammer Pressure Standard, up to -1 / +3 bar
Inert Gas Shielding / Rinsing Function Standard
Vibration System Standard
Temperature Control Up to 2000°C with Optical Pyrometer
Quality Management
RS 232, Ethernet, USB, etc. Connections Standard
GSM Modem (Remote Service) Optional
Accessories
Vacuum Mixing Machine Indumix2+ / Indumix3+ Optional
Furnace AK-20 or AK-50 Optional
Sandblasting Cabinet Optional
Vacuum Pump 8 m³/h Optional
Other Products in Category
Teknik Döküm | VC25000
VC25000
View Details
Teknik Döküm | Indutherm Mini Casting Machine MC16
Indutherm Mini Casting Machine MC16
View Details
Scroll down
Teknik Döküm | Jewelry Systems
Home Teknik Döküm | Jewelry Systems Jewelry Systems
Jewelry Systems
Teknik Döküm | Jewelry Systems
Teknik Döküm
Jewelry Systems

At Teknik Döküm, we began our journey in the jewelry industry in 1977.

In the 1980s, by establishing foundries for leading brands such as Atasay and Altınbaş, we became not just a supplier but a trusted solution partner for strong companies. In 1987, we organized Turkey’s first technical seminar in the field of jewelry casting, pioneering the industry. Since then, with our expertise, experience, and strong partnerships, we have continued to guide and shape the jewelry sector.

Get in touch
Teknik Döküm | Jewelry Systems
Years of Experience

48

+

Exports to the Country

80

+

Corporate Customer

2300

+

Employee

80

+

Our Products
Discover Our Featured Jewelry Systems
Categories
More
Teknik Döküm Academy
In the same year, it became the representative in Turkey for CEIA, one of the world's leading Italian companies specializing in magnetic fields. In 1987, it held the first Jewelry Casting seminar in Turkey.
Go to the Academy Page
Teknik Döküm | Jewelry Systems

Cookie Settings

On this website, we use cookies and similar functions to process device information and personal data. Processing serves the integration of content, external services and third-party elements, statistical analysis/measurement, personalised advertising and social media integration. Depending on the function, data is transferred to third parties and processed by them. This consent is optional, is not required for the use of our website, and can be revoked at any time using the icon in the bottom left corner.
