Ultrasonic Cleaning Machines, Logimec Series

The new “HD” ultrasonic cleaning machines are durable devices that provide deep and thorough cleaning on all types of surfaces, including complex and irregular ones. All models are high-quality, long-lasting, and high-performance machines.

In previous models, vibration pulse adjustment was manual; thanks to the microprocessor, this function has now been automated. Continuous frequency scanning ensures more uniform vibration waves, which positively contributes to the cleaning of products.

With the redesigned tank and valves, the corrosion resistance of the machines has been increased.

In the SILENT models, near-silent operation is achieved thanks to the sound-insulating cover. These models also feature a specially designed area for suspension or baskets. This option is available for models with a capacity of 25 liters and above.

270 HD 430 HD 950 HD 1600 HD 25 lt HD 25 lt HD Silent 50 lt HD 90 lt HD Silent 100 lt HD Silent 200 lt HD Silent
Tank Capacity 2.75 lt 5 lt 10.5 lt 16 lt 25 lt 25 lt 50 lt 90 lt 100 lt 200 lt
Tank Dimensions 24 × 13.7 × 11 cm 24 × 13.7 × 17 cm 30 × 24 × 17 cm 38 × 18 × 24 cm 35 × 25 × 30 cm 35 × 25 × 30 cm 50 × 25 × 40 cm 54 × 40 × 43 cm 67 × 30 × 50 cm 70 × 50 × 55 cm
Ultrasonic Power 150 W 300 W 550 W 800 W 950 W 950 W 1200 W 1500 W 1800 W 2800 W
Heater Power 250 W 250 W 500 W 1500 W 1500 W 1500 W 3000 W 4500 W 6000 W 6000 W
Electrical Specifications 230 V 230 V 230 V 230 V 230 V 230 V 230 V 380 V 3 Phase 380 V 3 Phase 380 V 3 Phase
Ultrasonic Frequency 26 kHz 26 kHz 26 kHz 38 kHz 26 kHz 26 kHz 26 kHz 26 kHz 26 kHz 26 kHz
Overall Dimensions 32 × 18 × 26 cm 32 × 18 × 31 cm 38 × 28 × 34 cm 53 × 30 × 42 cm 55 × 45 × 87 cm 69 × 55 × 90 cm 70 × 45 × 92 cm 69 × 55 × 90 cm 81 × 49 × 95 cm 84 × 75 × 100 cm
Weight 4.3 kg 5 kg 8 kg 13 kg 31 kg 76 kg 52 kg 76 kg 76 kg 95 kg
Other Products

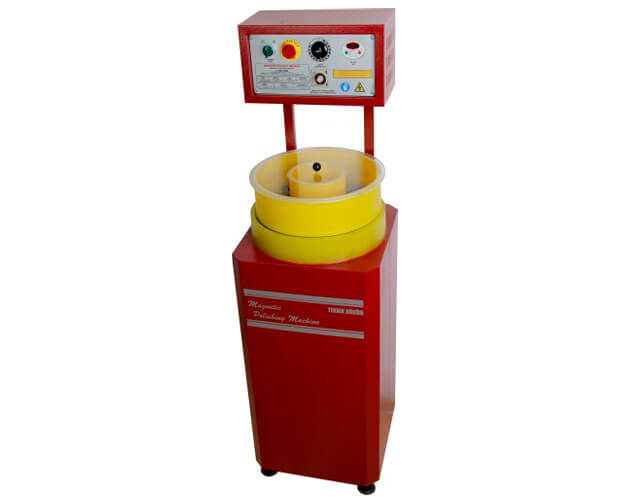

Magnetic Polishing Machine MP-1400TP
View Details

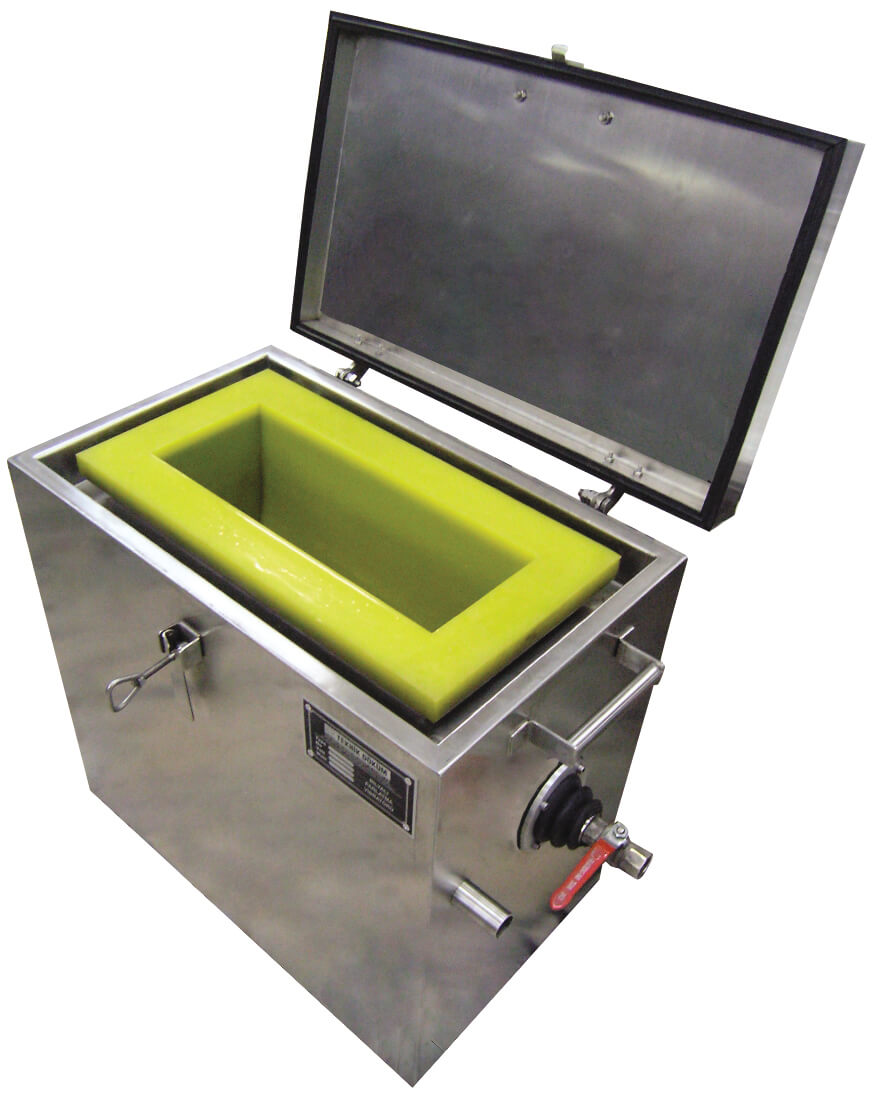

Ball Polishing Vibrators
