Pneumatic Mold Rubber Vulcanizer VPP20-25

  • Accurate  Temperature Control
  • Digital Display
  • Timer with Automatic Shut-off
  • Vulcanization under Constant Pressure
  • Perfect Moulds without Deformation

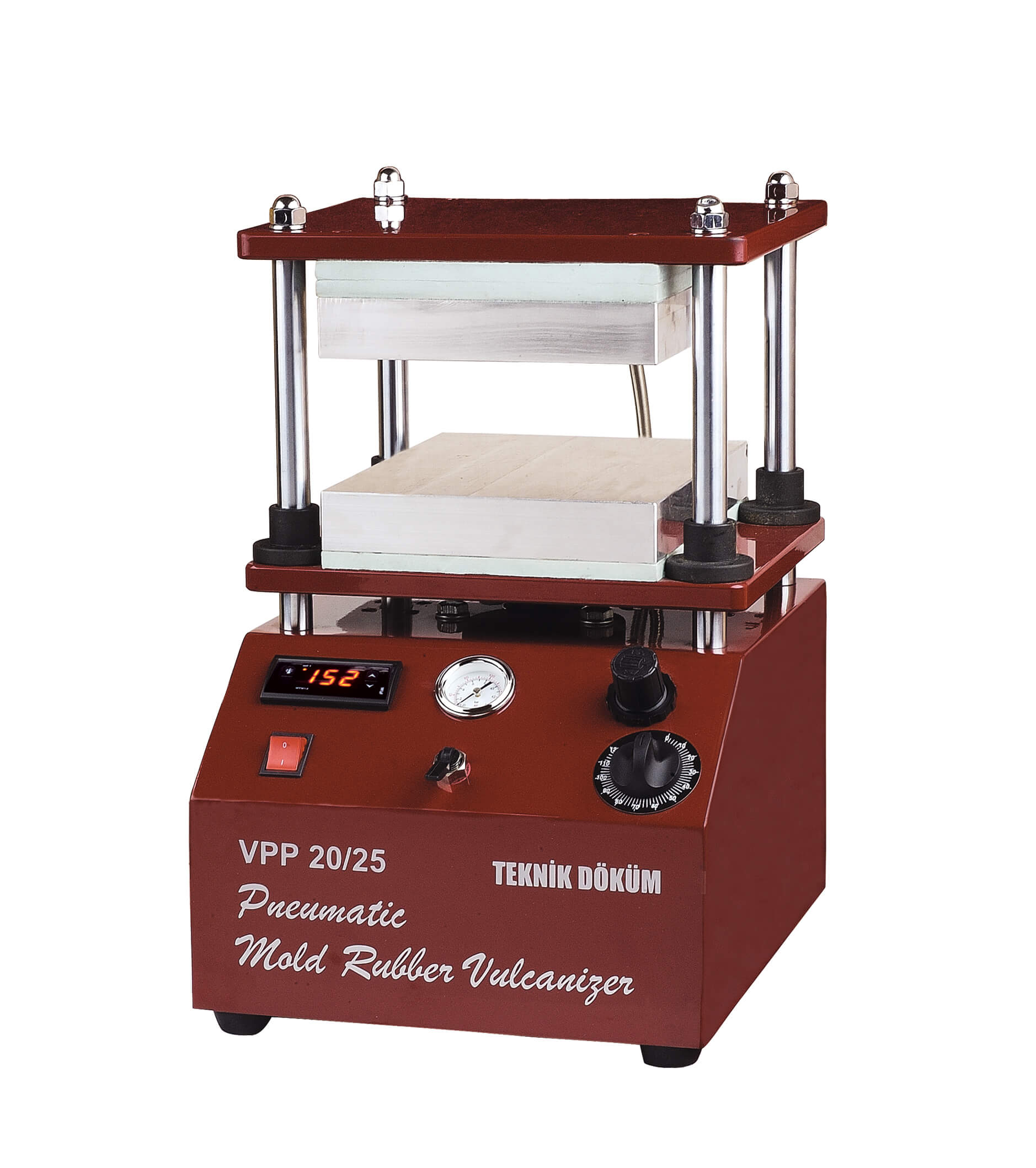

Pneumatic vulcanizing press for making rubber molds. Aluminum heating platens both with heating element. Rigid steel body four rods with bush bearings keeping platens horizontal. A 120 minute timer with automatic shut-off. Pressure regulator with gauge. Electronic control with digital display. Constant presure & temperature to assure minimal shrinkage and perfect molds.

VPP-20/25

with Single Thermostat

VPP-20/25-2D

with Dual Thermostat

MAXİMUM TEMPERATURE 200ºC 200ºC
SİZE OF HEATİNG PLATENS 200×250 mm 200×250 mm
MAXİMUM HEİGHT BETWEEN PLATENS 80 mm 80 mm
REQUİRED COMPRESSED AİR 6 bar 6 bar
Power 1000 W 1250 W
Voltage 230V AC 230V AC
Frequency 50-60 Hz 50-60 Hz
DİMENTİONS (W X L X H) 380×300×480 mm 380×300×480 mm
Weight 55 kg 60 kg
