Melting Machines

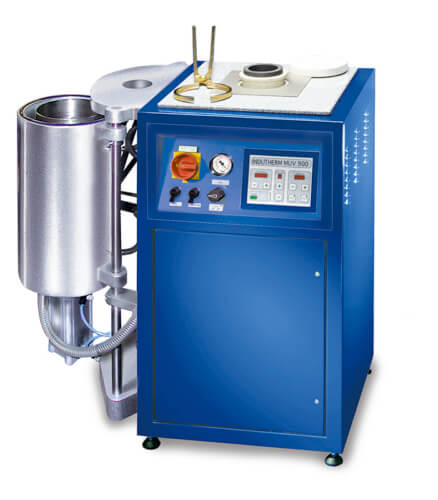

Melting Unit MUV400–MUV1200

In addition to the MU series, these devices are equipped with one or two vacuum chambers on the sides.

(One chamber in the MUV series, two chambers in the MUVV series.) In this way, the molten liquid metal in the crucible can be poured into the bell jar in the vacuum chamber using a tong half, allowing the casting process to be carried out. The maximum usable bell jar size is Ø160 × 400 mm.

PDF

The technical specifications are the same as the MU series. They are summarized again below.

MODEL Crucible Volume Crucible Capacity = kg 18K Au* Power Electrical Specifications
MUV 200/3.5
MUVV 200/3.5		 155 cm³ ~ 2 kg 3.5 kW 230 V
MUV 200/6
MUVV 200/6		 155 cm³ ~ 2 kg 6.0 kW 3x 400 V
MUV 400
MUVV 400		 400 cm³ ~ 5 kg 10.0 kW 3x 400 V
MUV 700
MUVV 700		 700 cm³ ~ 8.5 kg 12.0 kW 3x 400 V
MUV 900
MUVV 900		 900 cm³ ~ 11 kg 15.0 kW 3x 400 V
MUV 1200
MUVV 1200		 1200 cm³ ~ 14.5 kg 15.0 kW 3x 400 V

* Actual melting capacity

Maximum Temperature: 1500°C (except MU 200/3.5 = 1300°C)
