Cylinders

DRM F130re, Hand-operated Cylinder, Sheet + Roller + Reducer

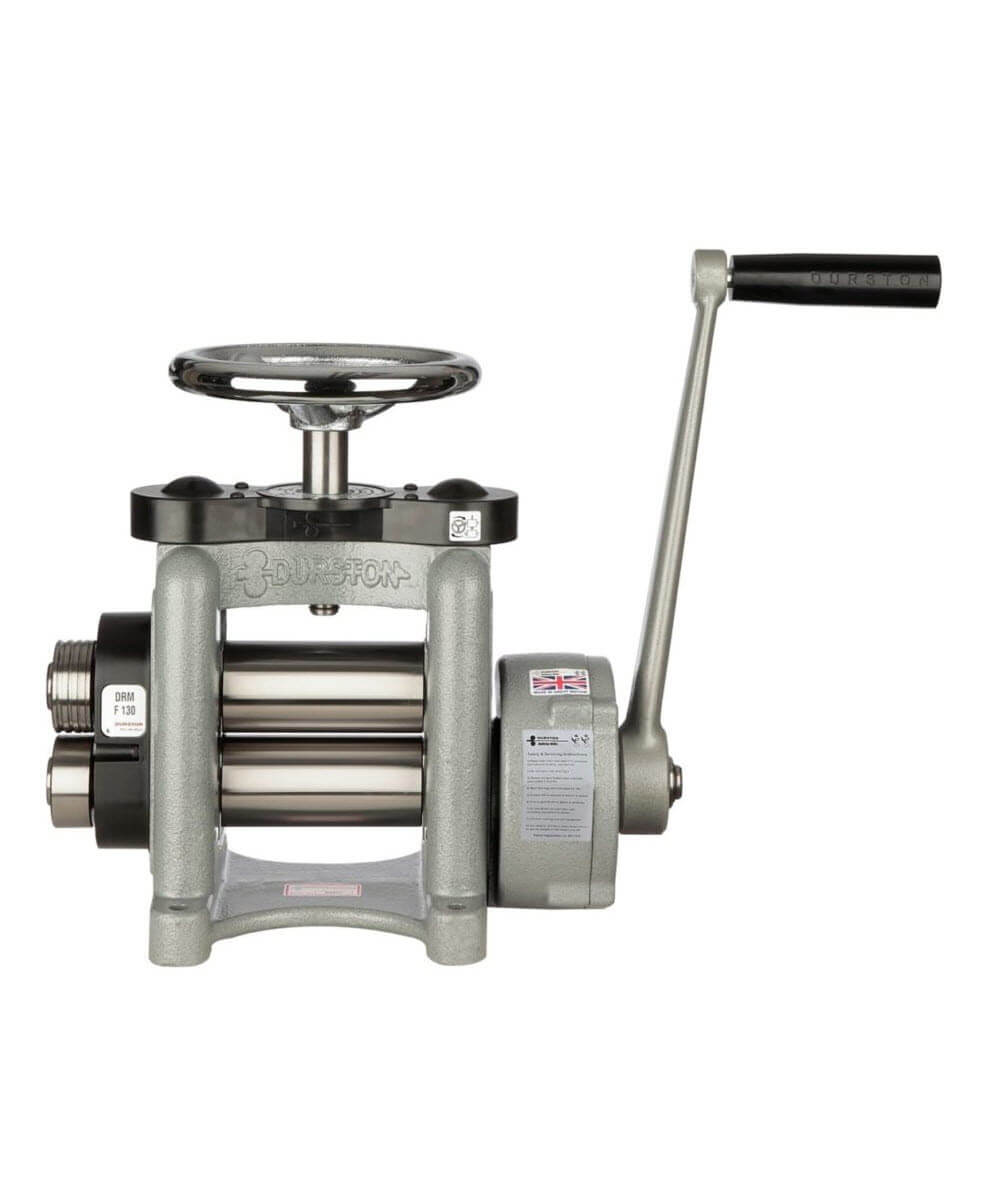

The DRM F130RE model Durston cylinder is a high-quality cylinder manufactured for rolling liners (lamas). It is robust and durable, featuring a cast iron housing (chassis). The rollers (rollers) on the cylinder edges and the unrivalled quality reducer make it very easy to use. The side rollers (rollers) also allow the wires to be given a fishbone (semicircular) shape. The cylinder rollers (rollers) have a hardness of 64 HRC. The roller bearings of the cylinder are securely fixed to provide the best results. The bearings are self-lubricating and maintenance-free. The plastic covers on the upper part prevent the upper gears from jamming.

DRM F130RE Rolling Mill – Technical Specifications
Feature Specification
Roller Diameter 60 mm
Roller Length 130 mm
Max. Sheet Thickness 6 mm
Side Roller Groove Sizes 4, 3, 2 & 1.5 mm
Gear Ratio 1:5
Weight 45 kg
External Dimensions 22×41×37 cm
