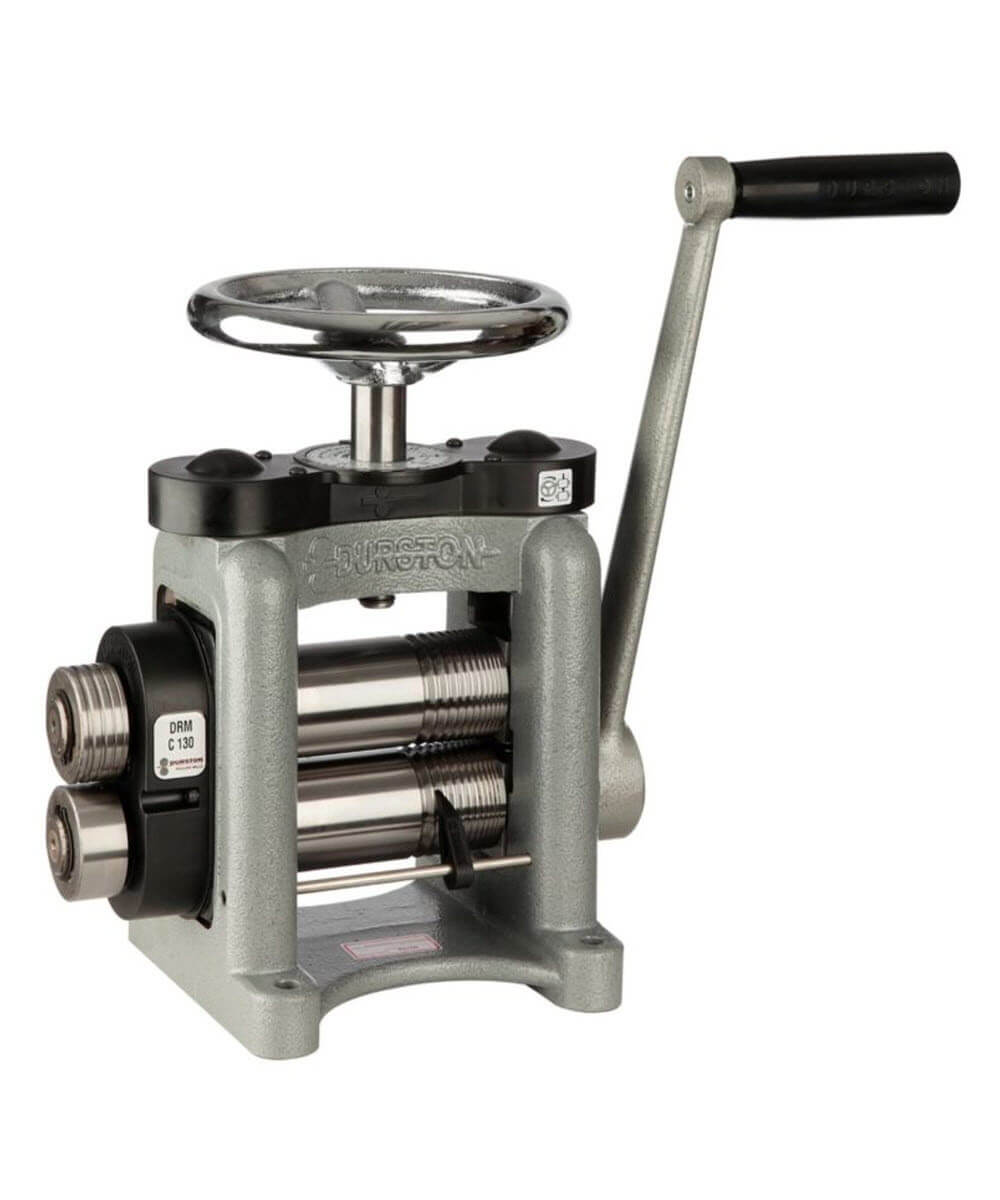

DRM C130e, Hand-operated Cylinder, Wire + Sheet + Roller

The DRM C130E model Durston rollers are high-quality rollers manufactured for both coating (lam) and wire rolling. They are robust and durable, with a cast iron casing (chassis). The side rolls (rollers) allow the wires to be given a fishbone (semicircular) shape. The cylinder rolls (rollers) have a hardness of 64 HRC. The cylinder’s bearing housings are securely fixed to deliver the best results. The bearings are self-lubricating and maintenance-free. The plastic caps on the upper part prevent the upper gears from jamming.

DRM C130E Rolling Mill – Technical Specifications
Feature Specification
Roller Diameter 60 mm
Roller Length 130 mm
Max. Sheet Thickness 6 mm
Wire Diameter Range (Max. / Min.) 8 mm – 1 mm
Number of Wire Grooves 11 Pieces
Side Roller Groove Sizes 4, 3, 2 & 1.5 mm
Weight 40 kg
External Dimensions 22×34×37 cm
