Automatic Embedding Machines

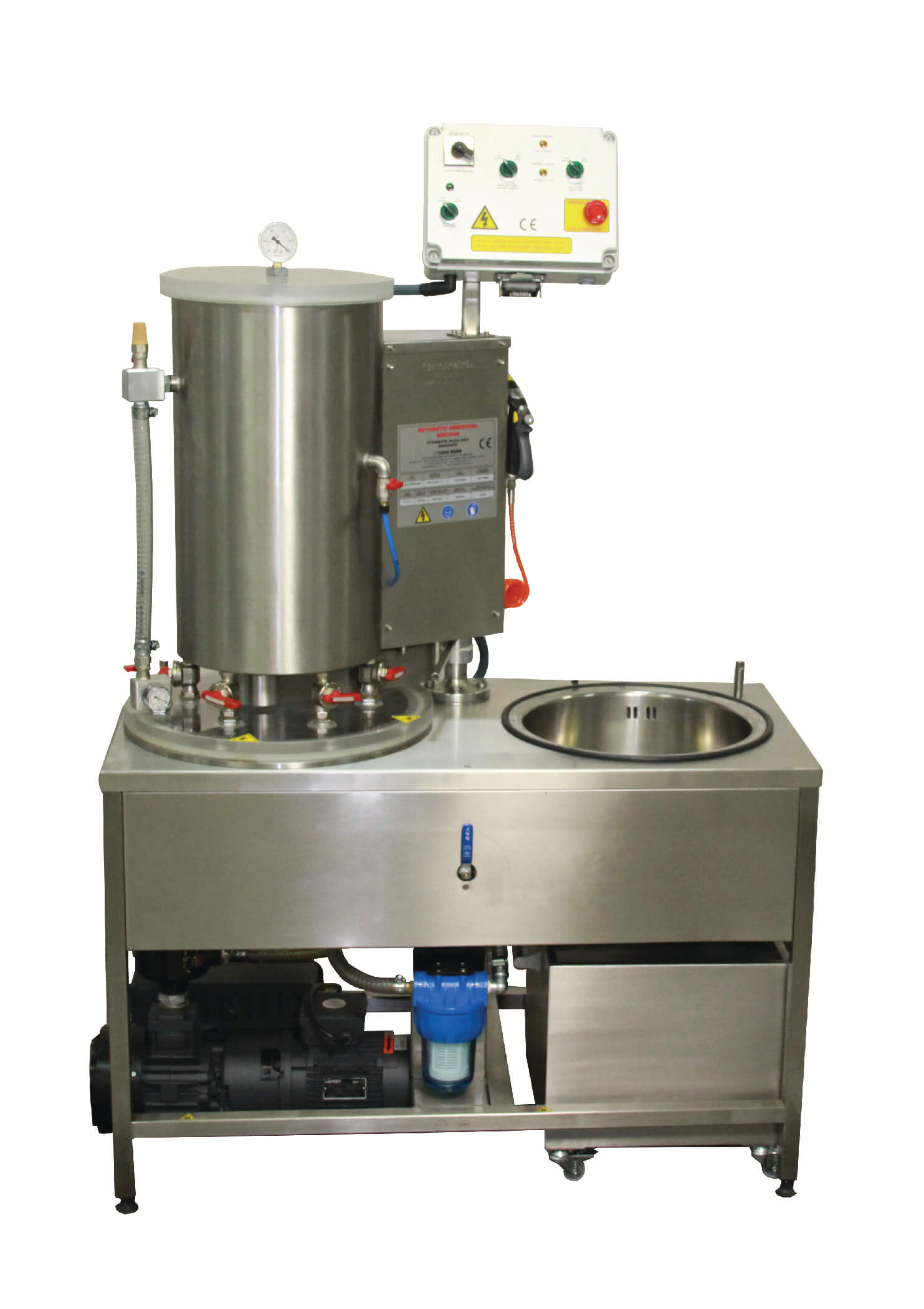

Automatic Embedding Machines, Vacumix series

  • Homogenous Slurry for Quality Castings
  • Superior Results with Vacuum and Vibration
  • Bubble-free Embedding, Nodule-free Castings
  • Easy Handing and Cleaning

Automatic embedding machine achieves the tasks of sieving the investment powder, mixing the investment under vacuum and filling the flasks under vacuum and vibration.



Best possible results with homogeneous investment slurry. Superior castings because of much better and solid embedding without any bubbles.



Easy handling, very short investing cycles and easy cleaning.

PDF
Model VACUMIX-3B VACUMIX-4B VACUMIX-5B VACUMIX-6B Vacum X-8BJ VACUMIX-8BJ+
Capacity (Dry Plaster) 8 kg 12 kg 15 kg 16 kg 40 kg 40 kg
Capacity (Number of Flasks) 3 4 5 6 8 8
Max. Flask Height 280 mm 280 mm 280 mm 300 mm 350 mm 350 mm
Max. Flat Flask Diameter Ø 120 mm Ø 120 mm Ø 125 mm Ø 125 mm Ø 100 mm Ø 100 mm
Max. Flanged Flask Diameter Ø 100 mm Ø 100 mm Ø 110 mm Ø 110 mm Ø 100 mm Ø 100 mm
Overall Dimensions (w x d x h) 420 x 790 x 1410 mm 450 x 950 x 1630 mm 495 x 1075 x 1620 mm 510 x 1110 x 1650 mm 93 x 170 x 137 cm 93 x 170 x 137 cm
Net Weight 145 kg 155 kg 170 kg 175 kg 250 kg 270 kg
Total Installed Power 1.25 kW 1.25 kW 1.6 kW 1.6 kW 2.5 kW 2.7 kW
Voltage 400 V AC 3~ 400 V AC 3~ 400 V AC 3~ 400 V AC 3~ 400 V AC 3~ 400 V AC 3~
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Upper Mixer + Sieve – – – – – –
Mixing Chamber Lifting System – – – – Manual Pneumatic
Integrated Automatic Water Dosing System – – – – – +
